Visual TruView™ - Up Time Select

Общие сведения

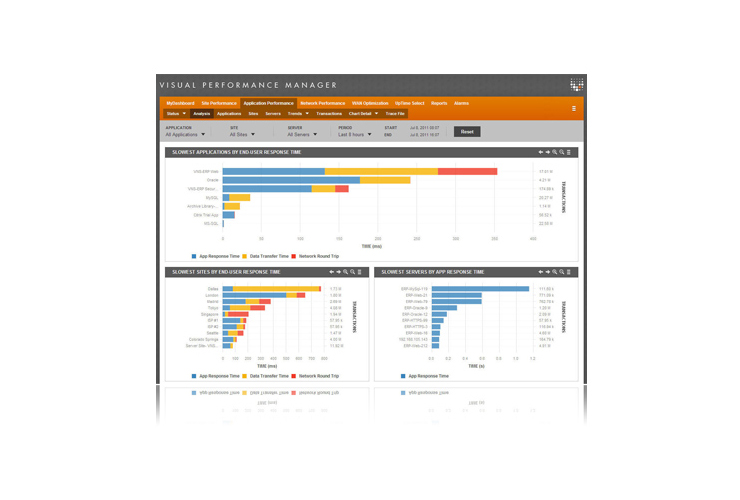

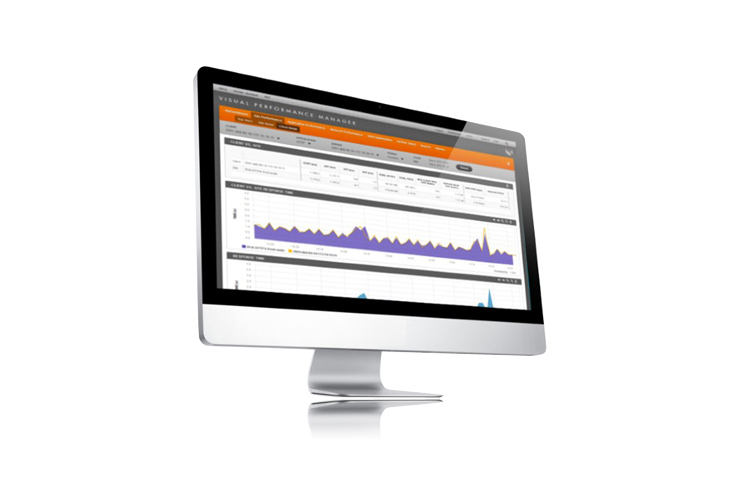

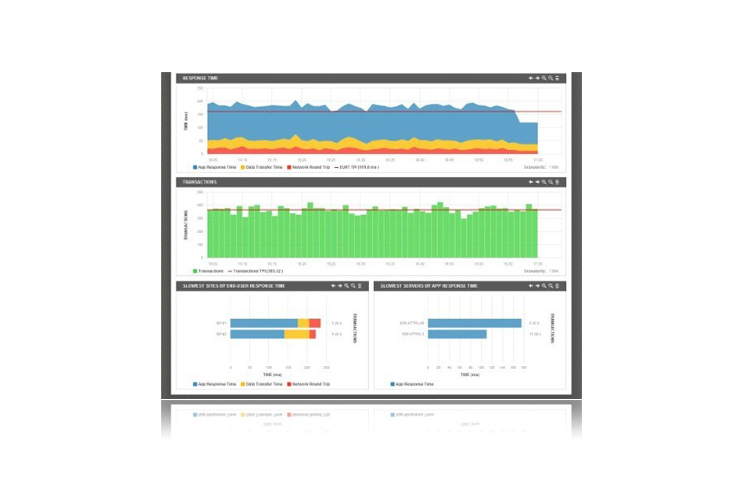

This tried and true solution is capable of replacing most network, application, and VoIP monitoring enterprise solutions with a single interface and, when acquired via a Managed Service, as a monthly recurring charge with no capital outlay. Ask your service provider for more information about how you can consolidate your tools and remove the management overhead of solutions. The Visual TruView console also acts as a central management point when multiple TruView Branch probes are deployed. Able to support 1000s of remote probes and hundreds of multi-tenant customers or departments, the TruView portal is a proven carrier grade solution. The single box solution, TruView, can also supports 100s of remote monitoring hardware and virtual probes.
Функции
Hardware probes capabilities

Last Cry Event- the ASEs provide a remote site power outage notification in storms in real time, providing the NOC team instant situational awareness whether a remote site has been by an electrical outage. This is different from a router failure and a hard cut via the back hoe in the parking lot

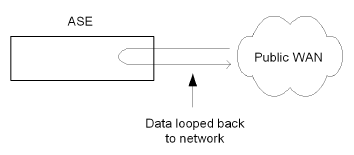

Bit Error Rate Testing (BERT) and Loop back capabilities is old school troubleshooting on Layer 1 that allows for further prove that the last mile is not clean. The easy solution is to upgrade the circuit and get new access to the remote location. This causes additional unexpected costs.

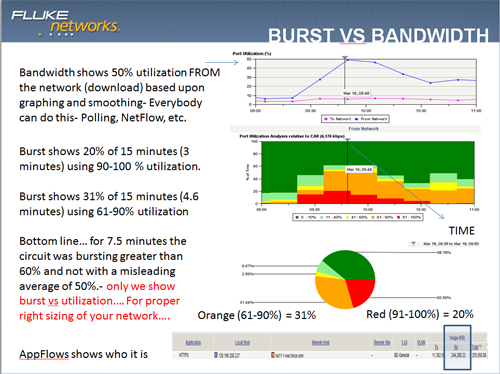

1 second Burst Analysis- the problem with most network monitoring tools is they average out there sampling points, while remote ASE probes have the capability of identifying bursty traffic and seeing who and what is causing the “network to be slow.”

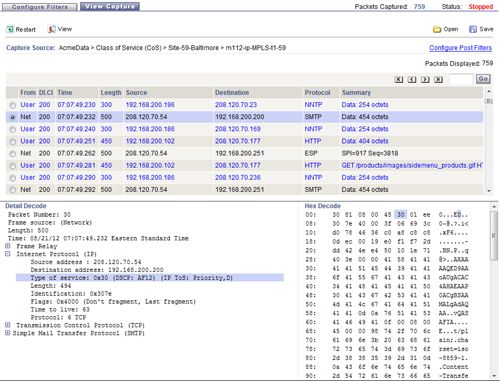

Remote Packet Capture- Being inline on the wire into the remote location is the premier position to identify those pesky problems and isolate the issue. By having the packets available, your advance technical services team will be able to isolate the problem quickly and efficiently.



Overcome Objections for Installing Hardware Inline on your Network
1. A probe could bring down the network.
  • Link Safe- All hardware probes are capable of failing to wire without interrupting the service. This has been certified by major international Service Providers and Fortune 500 enterprise labs. In fact, we encourage you to test it yourself in your own environment.

2. Probes cost a lot.
  • This concept is propagated by trying to put large packet collectors at remote locations that are designed for head end circuits or data centers. ASEs provide just the right amount of information required to know who owns the problem and isolate the problem down to a server, client, application, or VoIP call. An alternative is to be purchased as a monthly recurring charge from a service provider.

3. Probes require a lot of bandwidth.
  • Data Collection- the amount of data collected via the VPM server is minimal. Например: T1 ASE= 550kb per day and a 1 GIG = 7,6 Mb per day. At any time real time data is available at a remote location for immediate gratification and troubleshooting of a site, if there are no problem indicators at the other sites then data is collected on off hours, but only if there is bandwidth available.

4. Probes are hard to install and configure.
  • Installation down time- after racking and stacking the probe next to the customer edge router at the remote location and confirming the managed IP address and the SNMP community string, the amount of down time is limited to how fast you can physically unplug a cable and plug in a cable. Fluke has shipped and installed 10s of 1000s of probes, we offer installation services if needed. The probes automatically discover applications, burst, bandwidth, errors, etc with no configuration.

5. Probes are not scalable.
  • Management of Probes- this is the easiest and most simplistic part of the solution, as the VPM server and TruView appliance is self-regulating and monitoring. A full blown solution service offering with 100s of customers and 1000s of probes is typically monitored and managed by less than two full time employees.

6. Probes are not secure.
  • Data transfer- all data can be encrypted when transferred between the probe and the server on your private MPLS network that is dedicated to you and the VPM web interface can be HTTPS secured
Site to Site Active testing

Most service providers provide SLAs on the core network from the Provider Edge Router to the Provider Edge Router and do not include site to site Service Level Agreements. By utilizing the probes at each location, the enterprise can see the true site to site SLAs including the last mile on either location. For example, if a site is London with “UK Telecom” providing the access line and a site is in New York with “Bell New York” providing the access, and the service provider for the end to end MPLS circuit is “Awesome Telephone Technology,” how will you know where the problem is?


The probes provide the key measurements necessary for site to site SLAs (up to 4 096 end points) to included:


  • Site to Site Availability per CoS including last mile
  • Round Trip Delay per CoS because distance does matter.
  • Packet Delivery Ratio per CoS- Packets Delivered / Packets Offered- based upon actual, real, customer traffic- not synthetic testing.
  • Jitter- measurements because the time between packets can cause issues.
  • In addition, an on-demand tool called, “Verify Connectivity” between site to site reduces the time to verify that sites can talk to each other. Normally, you would log into a remote device at site A and then try to identify a remote device at site B and ping it. Does your first level support desk do this?

Time synchronization for Network, VoIP and Applications

Why have five tools when you can have one? A probe automatically correlates the errors on layer 1 with bandwidth, bursting, top talker, server, and VoIP MoS score at the same time at each remote location. This allows instant real time visibility and reduces having to log into three or four different tools, even junior IT support can troubleshoot issues on the network and isolate the root cause.


The continuous monitoring and situational awareness will allow you to successfully roll out your next three to five year IT strategic initiatives like VoIP, Video, Virtualization, Wireless, BYOD and Cloud goals.


The probes provide real time SNMP events that allow for instant troubleshooting at each location. Once the troubleshooting is completed, exhaustive arrays of reports are available for Daily, Weekly, or Monthly review.


  • Real Time MoS Scores and VoIP analysis
  • Traffic Capture for packet analysis and verification
  • Real time 1 second monitoring and visibility
  • Real time SNMP events
  • Historical baselining and trending of the network, applications, and VoIP traffic.
Общие функции

LMIsolate- LMI and BGP Keep Alive- used when the CPE Router is hard down- provides 100% local loop availability and problem domain isolation


BGP command line visibility and validation


Back door Telnet Proxy to CPE Router


Inband and/or LAN Traffic Management (out of band)- as long as the TruView or VPM has an IP route between the Probe and the server


NetFlow export is also available via a Command Line Interface to any NetFlow collector.


3rd party integration by forwarding traps to service desks in plain English and launching back into the tool at the site and time the event occurred.


VPM Single log in support via LDAP and RADIUS

Модели и принадлежности
Номер модели/название Описание
Virtual Probe SKU An exact replicate of the hardware ASE software features is available for a VmWare Host or on a single VM instance within a VM Host.
SKU 01849 Advanced MPLS with applications integrity Part Number 2668440 Includes the following license modules: (Service Summary, Network Troubleshooting, Back-in-time, Traffic Capture, Class of Service, AppFlows, AppSummary, SLAs)
Ethernet Analyses Service Elements (ASE) probe
SKU 01900 Select 10/100 ethernet inlne ASE (Model 807-0120)
SKU 02167 4 Port monitor 1 gbps RJ45 appliance based ethernet
SKU 02168 4 Port monitor 1 gbps SFP appliance based ethernet ASE (Model 807-0410)
SKU 02240 Multi-mode 850 nm single inline 1gbs appliance based ethernet ASE (Model 807-0411-MM)
SKU 02241 Single-mode 1310 nm single inline 1 gbs appliance based ethernet ASE (Model 807-411-SM)
SKU 02227 10g ethernet ASE appliance- monitor only (Model 807-0440)
TDM Analyses Service Elements (ASE) probe
SKU 01802 Select T1 CSU/DSU ASE with DSX port (Model 807-0109)
SKU 01805 Select T1 CSU/DSU ASE with mgmt dial access and DSX port (Model 807-0112)
SKU 01808 Select t1/e1 g703 inline probe (Model 807-0113)
SKU 01965 Select 4XT1/E1 ASE (Model 807-0115)
SKU 01969 Select DS3-E3 inline probe ASE (Model 807-0204)
SKU 02210 DS3/E3 ATM in-line probe ASE (Model 807-0205)
SKU 02088 Select DS3 ATM in-line probe ASE (Model 807-0205)
SKU 02244 Single-mode 1310 nm single inline OC3/12 applicance based POS ASE (Model 807-0420-SM)
Visual software modules
SKU 01654 Advanced MPLS package (Includes Network Troubleshooting, Back-in-Time, Traffic Capture, Class of Service)
SKU 01849 Advanced MPLS with applications integrity (Includes Network Troubleshooting, Back-in-Time, Traffic Capture, Class of Service, AppFlows, AppSummary)
SKU 01923 Advanced MPLS with VOIP integrity (Includes Network Troubleshooting, Back-in-Time, Traffic Capture, Class of Service, AppFlows, AppSummary, VoIP)
Installation and pre-configuration services
SKU 00048 19” Rack Mount kit 1U (holds 2 ASEs) Part Number 2663862
SKU 00426 On-site ase installation (us only) Part Number 2664624
Visual Network Systems will receive and hold the inventory, pick, stage, pre-configure, test, re-box, and ship the ASE. Pre-configured ASEs arrive boxed and labeled, offering a 'plug and play' installation. To arrange for pre-configuration services please contact VTAC at 1-800-708-4784 or  Этот адрес электронной почты защищен от спам-ботов. У вас должен быть включен JavaScript для просмотра.
SKU 00427 On-site ase installation (US only) Part Number 2664636
A field engineer is dispatched to each domestic site and will configure and physically install each ASE to full operational status. This is a turnkey service that includes two hours of on-site ASE installation services. Installations that take longer than two hours will incur additional hourly on-site support charges. Travel charges are included. Lead-time for scheduling from receipt of PO: 5 business-days (in US) 10 business days (outside US). To schedule installation services please contact VTAC at 1-800-708-4784 or  Этот адрес электронной почты защищен от спам-ботов. У вас должен быть включен JavaScript для просмотра.
SKU VPM-QKSTRT-ONSITE VPM quick start onsite (US only) Part Number 4182829
Visual Network Systems’ professional services experts will install and configure Visual Performance Manager solution in customer environment based upon implementation roadmap designed based on customer requirements. Project Scope, Estimate and Statement of Work must be provided prior to purchase.
SKU VPM-QKSTRT-REMOTE VPM quick start remote (US only) Part Number 4182818
Visual Network Systems’ professional services experts will deliver customized consulting serviced based on customer requirements. Project Scope, Estimate and Statement of Work must be provided prior to purchase.
INST-SVS-VPM-GEN Installation services - day rate (sow required)- US only Part Number 3589027
Visual Network Systems’ professional services experts will install and configure Visual Performance Manager solution in customer environment based upon implementation roadmap designed based on customer requirements. Project Scope, Estimate and Statement of Work must be provided prior to purchase.
SVS-VPM-GEN Custom professional services (sow required)- US only Part Number 4044928
Visual Network Systems’ professional services experts will deliver customized consulting serviced based on customer requirements. Project Scope, Estimate and Statement of Work must be provided prior to purchase.
