Модули EMPower Sensor (7002-003/005)

Общие сведения

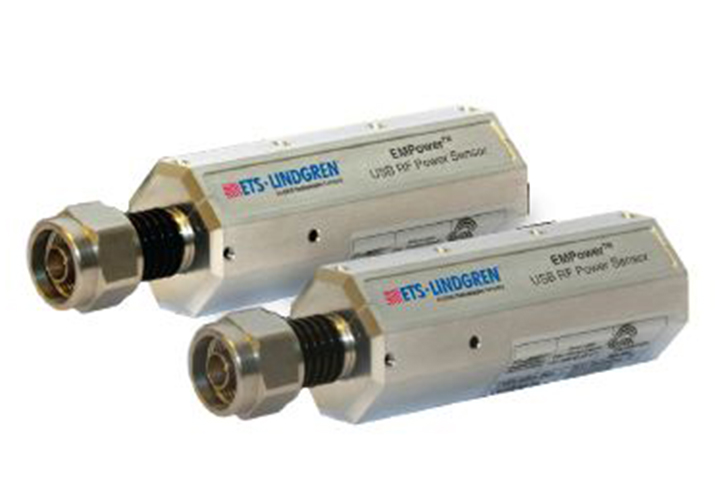

Модули EMPower (7002-003/005). Работают с многофункциональной системой EMCenter. Модули имеют 4 USB-порта для подключения измерителей мощности. Предназначены для очень быстрых измерений на высокочастотных импульсных сигналах. Оптимальны для измерений в соответствии с автомобильными, военными, телекоммуникационными и базовыми стандартами ЭМС.

Характеристики
Model 7002-003 (Sensor) 7002-005 (Sensor)
Detector Type Diode Diode
Measurement Function Peak Power Peak Power
Calibrated Frequency Range 9 kHz to 6 GHz 80 MHz to 18 GHz
Power Measuring Range -55 dBm to +10 dBm -45 dBm to +10 dBm
Input Damage Level >20 dBm >20 dBm
Resolution 0.01 dB 0.01 dB
VSWR <1.05 @ 10 MHz to 100 MHz
<1.15 @ 100 MHz to 2 GHz
<1.35 @ 2 GHz to 6 GHz
<1.20 @ 80 MHz to 10 GHz
<1.35 @ 10 GHz to 18 GHz
Maximum Linearity Error (0 dBm ref) 0.05 dB/10 dB 0.05 dB/10 dB
Measuring Speed (Per Second) 1 MSps (10 MSps for CW) 100 kSps or 20 kSs (Software Selectable) 1 MSps (10 MSps for CW) 100 kSps or 20 kSs (Software Selectable)
Logging Buffer Record Mode 4,000 Samples 2,000 Pre-trigger 2,000 Post-trigger 4,000 Samples 2,000 Pre-trigger 2,000 Post-trigger
Accuracy (23° ± 2° C) 0.25 dB 0.25 dB (≤10 GHz) 0.50 dB (>10 GHz)
Temperature Effect <0.15 dB Over Full Temperature Range <0.15 dB Over Full Temperature Range
Measurement Units dBm dBm

Model 7002-001 (Modular Plug-in Card) 7002-003 (Sensor) 7002-005 (Sensor)
Temperature Range (Use) 0° C to +40° C 0° C to +40° C 0° C to +40° C
Temperature Range (Storage) -20° C to +85° C -20° C to +85° C -20° C to +85° C
Relative Humidity 10 to 90% (Non-condensing) 10 to 90% (Non-condensing) 10 to 90% (Non-condensing)
Connector to Plug-in Card or PC (Data) n/a USB-B USB-B
USB Communication n/a USB 1.1 USB 1.1
USB Power Consumption n/a < 200 mA < 200 mA
RF Input Connector n/a N-type Precision N-type Precision
