Модули РЧ переключателей EMSwitch (7001-00X)

Общие сведения

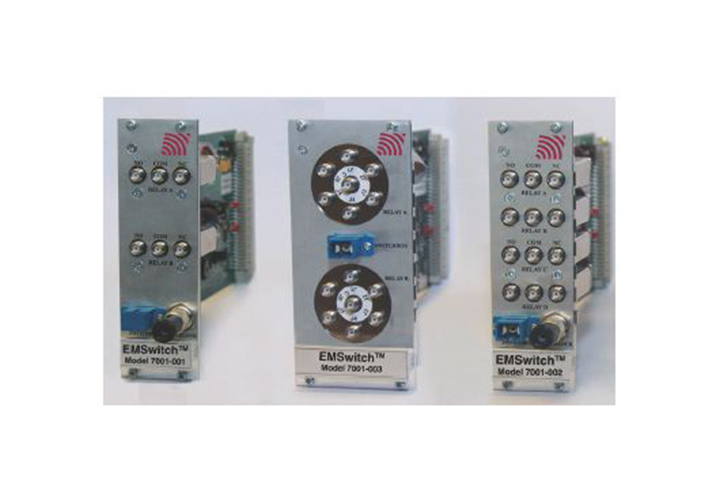

Модули РЧ переключателей EMSwitch (7001-00X). Работают с многофункциональной системой EMCenter. Оптимальны для измерений излучения и помехоустойчивости, тестирования беспроводного оборудования, для автоматизации измерений с применением специализированного ПО TILE, MQuest и других.

Характеристики

Interlock - First Switch on Each Card can be Used as a True Interlock Switch
Supply Voltage (Volts) - Through EMCenter
Power Consumption (Maximum Watts) - 30 W
Temperature Range - 0° C to +40° C
Relative Humidity - 10 to 90%
Remote Control External Relays - Fiber Optic Link


Model

Number of Relays

Frequency Band

RF Switching Capacity

Exterior Dimension (H x W x D)

RF Connectors

7001-001
(Plug-in Card)

2x SPDT

18 GHz

DC to 3 GHz: 240 W
3 to 8 GHz: 150 W
8 to 12.4 GHz: 120 W
12.4 to 18 GHz: 10 0W

One Slot

SMA Type

7001-002
(Plug-in Card)

4x SPDT

18 GHz

DC to 3 GHz: 240 W
3 to 8 GHz: 150 W
8 to 12.4 GHz: 120 W
12.4 to 18 GHz: 10 0W

One Slot

SMA Type

7001-003
(Plug-in Card)

2x SP6T

18 GHz

DC to 3 GHz: 240 W
3 to 8 GHz: 150 W
8 to 12.4 GHz: 120 W
12.4 to 18 GHz: 10 0W

Two Slot

SMA Type

7001-005

(Plug-in Card)

1x SP6T

18 GHz

DC to 3 GHz: 240 W

3 to 8 GHz: 150 W

8 to 12.4 GHz: 120 W

12.4 to 18 GHz: 10 0W

One Slot

SMA Type

7001-011
(Plug-in Card)

2x SPDT

40 GHz

DC to 6 GHz: 80 W
6 to 12.4 GHz: 60 W
12.4 to 18 GHz: 50 W
18 to 26.5 GHz: 20 W
26.5 to 40 GHz: 10 W

One Slot

K Type

7001-012
(Plug-in Card)

4x SPDT

40 GHz

DC to 6 GHz: 80 W
6 to 12.4 GHz: 60 W
12.4 to 18 GHz: 50 W
18 to 26.5 GHz: 20 W
26.5 to 40 GHz: 10 W

One Slot

K Type

7001-013
(Plug-in Card)

2x SP6T

40 GHz

DC to 6 GHz: 40 W
6 to 12.4 GHz: 30 W
12.4 to 18 GHz: 25 W
18 to 26.5 GHz: 15 W
26.5 to 40 GHz: 5 W

Two Slot

K Type

7001-015
(Plug-in Card)

1x SP6T

40 GHz

DC to 6 GHz: 40 W
6 to 12.4 GHz: 30 W
12.4 to 18 GHz: 25 W
18 to 26.5 GHz: 15 W
26.5 to 40 GHz: 5 W

Two Slot

K Type

7001-021
(Plug-in Card)

SPDT

12 GHz

DC to 1 GHz: 700 W
1 to 2 GHz: 500 W
2 to 3 GHz: 400 W
3 to 8 GHz: 250 W
8 to 12.4 GHz: 200W

One Slot

N Type
