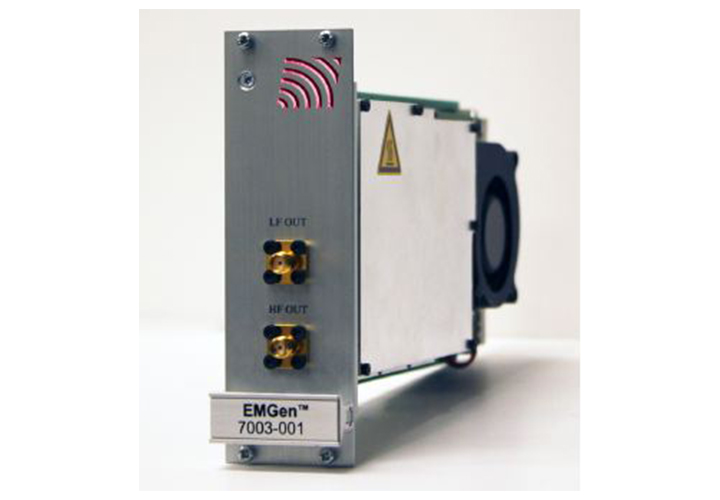

Frequency Band

9 kHz to 230 MHz (LF Output)
80 MHz to 6 GHz (HF Output)

Frequency Resolution

1 Hz

Frequency Error

+/- 20 ppm

Minimum Output Level

-70 dBm

Maximum Output Level

+10 dBm (+4.0 dBm When Using AM)

Amplitude Resolution

0.1 dBm

Amplitude Accuracy

+/- 1.5 dB

Output Level Settling Time

<500 us

Harmonics

<- 50 dBc

Non-Harmonic Spurious

<- 50 dBc

Modulation Types

CW, AM and Pulse

Modulation Frequency Range

10 Hz to 100 kHz

AM Modulation Depth

5 to 95% (Usable 0 to 100%)

AM Accuracy, Output LF
Measured at 0 dBm Level

< +/- 3% (5 to 95% Modulation Depth)

AM Accuracy, Output HF
Measured at 0 dBm Level

< +/- 2% (10% to 90% Modulation Depth)
< +/- 3% (5 to 10% and 90 to 95% Modulation Depth)

Pulse On/Off Time Range

200 ns to 100 s

Pulse Modulation On/Off Ratio
Output LF

> 60 dB (9 kHz to 230 MHz)

Pulse Modulation On/Off Ratio Output HF

> 90 dB (80 MHz to 1 GHz)
> 70 dB (1 GHz to 3 GHz)
> 60 dB (3 GHz to 6 GHz)

Supply

12 VDC

Dimensions

3U x One 19 in Slot in EMCenter

Temperature Range (Use)

+10° C to +40° C

Relative Humidity

10 to 90% (Non-condensing)
